Smooth Running Organic Fertilizer Fermentation Chicken Manure Compost Fertilizer Making Machine Organic Fertilizer Production Equipment Disc Pellet

1 Set
MOQ
$2,880.00(1 - 9 Sets) $2,680.00(>=10 Sets)
価格
Smooth Running Organic Fertilizer Fermentation Chicken Manure Compost Fertilizer Making Machine Organic Fertilizer Production Equipment Disc Pellet
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Features: Smooth operation
Applicable Industries: Other, Organic fertilizer production, Making particles
Showroom Location: Egypt, Canada, Turkey, Italy, Germany, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Kyrgyzstan, Uzbekistan, Taj
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine, Bearing, Motor
Application: Organic fertilizer
Production Capacity: 93%
Voltage: 380V
Weight: 1200 KG
Dimension(L*W*H): customized
Condition: New
Warranty: 1 Year
Key Selling Points: Easy to Operate
Name: Disc granulator
Function: Pellet feed or fertilizer
Type: ZL25
COLOR: Customer's Request
Raw Material: Organic Manure
Advantage: Widely Usage
Capacity: 1000-1500t
Usage: Pellet feed or fertilizer
Keyword: Pelleting with organic fertilizer
Power: 55KW
基本情報
お支払配送条件
Packaging Details: Under normal circumstances, the whole body of the machine is covered with film, and then it is packed and delivered to the designated port. Can also be packaged according to customer requirements.
Supply Ability: 10 Set/Sets per Week
製品の説明
Product Overview

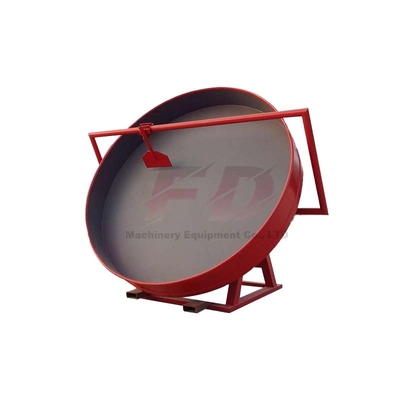

Organic fertilizer production equipment disc granulator

The Angle of the pelleting plate of the disc pelleting machine adopts the overall circular arc structure, and the pelleting rate can reach more than 93%. The pelleting plate is equipped with three discharge ports, which is convenient for intermittent production, greatly reducing the labor intensity and improving the labor efficiency. Reducer and motor adopt flexible belt transmission, stable starting, durable, no deformation. Thickened, weighted, strong base design, no need for anchor bolts fixed,smooth movement, the main gear of pelleting machine adopts high-frequency quenching, prolong the service time. This surface has uniform material, high grain rate. Smooth operation, durable equipment, long use time and other advantages, well received by users, is the majority of users to choose the ideal product.
DETAILS SHOW
The bottom of the granulation plate is strengthened with a number of radiant steel plates, which are durable and never deformed.We use the best steel to produce our products, so as to ensure the quality and longevity of our products.
The Angle of the pelleting plate of the disc pelleting machine adopts the overall circular arc structure, and the pelleting rate can reach more than 93%.The adjusted Angle can ensure even granulation and high granulation rate. Meanwhile, the granulation plate is equipped with three discharge ports, which improves the production efficiency and output.
Disc pelletizer design is reasonable, from the disc to the end are designed by engineers to ensure the pelletizing rate,productivity and service life of the disc pelletizer.
In order to extend the service life of the disc granulator, we have weighted and thickened the base design, without the need for anchor bolts fixed, the disc granulator can also run smoothly.
WORKING PRINCIPLE
The working principle of this series of products is that the belt pulley and belt are driven by the main motor, and the pinion is driven by the reducer. The pinion and the big gear fixed at the bottom of the plate are open, they tooth each other, work opposite each other. Big gear is by professional design cone hole is installed on a fixed on a frame to adjust the plate after granulating disc, the granulating disc revolve, coupled with the spray device, make material even together, cause the balls in the granulation upper plate design of the automatic feeding system, please, to prevent the wall material viscosity and the use time of this machine can be enhanced greatly, with the continuous rotation of the motor, Materials into the continuous, in order to achieve mass production, to meet the needs of users.
PRODUCT SPECIFICATIONS
Modle
Diameter(mm)
Speed(r/min)
Volume(m³)
Power(Kw)
Production capacity(t/h)
ZL25
2500
13.6
2.5
7.5
1-1.5
ZL28
2800
13.6
3.7
11
1-2.5
ZL30
3000
13.6
4.2
11
2-3
ZL32
3200
13.6
4.8
11
2-3.5
ZL45
4500
12.28
6.1
37
10
THE PRODUCTION LINE
Organic fertilizer pellet production line is mainly the material (cow dung, sheep dung, chicken manure, straw, corn straw and sludge) such as animal manure organic waste after fermentation rotten, and ratio of other raw materials in accordance with the requirements in the ratio of mixing system for measuring, ingredients, mixing, by fully mixing materials by belt conveyor after granulating uniform continuous feeding, After polishing and shaping machine cast into spherical particles, after drying, cooling,screening, coating and other processes to become qualified organic granular fertilizer.
SIMILAR PRODUCTS
WHY CHOOSE US
Our company is an equipment manufacturing enterprise integrating R & D, production and sales of agricultural, forestry and construction machinery. With the development goal of "building a century old enterprise and forging an international brand", the company adheres to the business philosophy of "quality, innovation, integrity, harmony and win-win", and provides high-quality and efficient products and services for the society.
FAQ
Q1: Are you trading company or manufacturer? A: We are factory. Q2: How long is your delivery time? A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity. Q3: What is your payment method? A: 30% of total prices should be paid by T/T as down payment; 70% balance payment should b paid by T/T before delivery. Q4: How long is the warrenty of your equipments? Does your company supply the spare parts? A: The warranty period of crusher equipments is one year. And we will supply the spare parts for you at lowest cost. Q5: If I need the complete crushing plant can you help us to build it? A: Yes, we can help you set up a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Oversea
